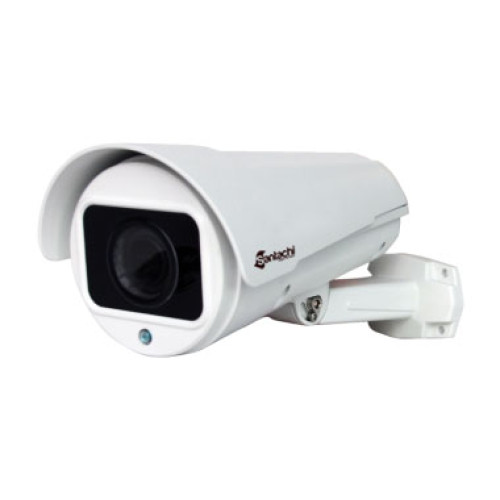

SAN210200BAL
$0.00
In Stock
Quick Overview
Key Features
- Image Sensor: 1 / 3” CMOS AHD
- Resolution: 2.0 MP (1080P)
- Optical zoom: 10x
- Focus Length: 5.1-51mm
- IR Range: 30 meters
- Pan Range: 160 degree
- Weather Proof Standard: IP66
Description
| Display | |
| Sensor | 1/3" CMOS |
| Effective pixels | 1920*1080@30fps1920*1080@25fps |
| Total pixels | 2.0MP |
| Lens | 10X 5.1-51mm |
| 3D NR | Support |
| Min. illumination | Color: 0.5Lux\ B/W: 0.05Lux |
| BLC | Support |
| WB | Indoor/Outdoor/Auto/Manual |
| D/N | IR-CUT |
| S/N Ratio | ≥50dB |
| Parameters |
|
| Pan range | 160 degrees |
| Preset Points | 220 |
| Guard Tours | 3 groups |
| Guard Points | Max.16 points, dwell time user selectable |
| Operating temperature | Indoor:0ºC～+40ºC Outdoor: -40℃～+60℃ |
| Operation menu | English |
| Pan display | Support |
| Humidity | ≤95% Non Condensing |
| Power | DC 12V 2A |
| Consumption | ≤15W |
| Lightning Protection | Transient voltage 6000V |
| Video interface output | AHD |
| Communication mode | RS485 (+/-)/ Coaxial Cable |
| Related validation | IP66,CE,FCC,RoHs |
| Auto Control IR LED | PWM |
| LEDs | Array 42Mil 4pcs |
| IR distance | Up to 30 meters |
| Support ambient light detection | IR illumination on 1-15 grades selectable; |
