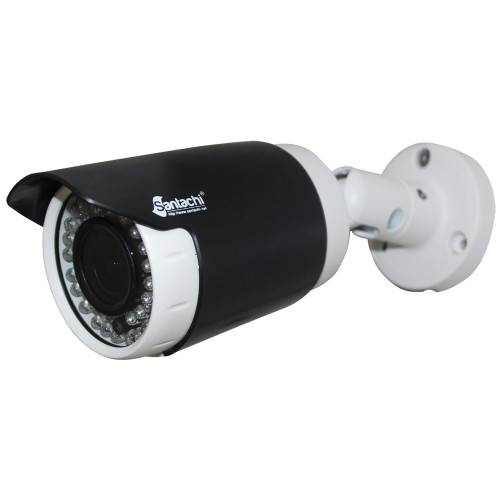

SAN211500BAR
$0.00
In Stock
Quick Overview
Description
| Image Sensor | |||
| Sensor size | 1/2.5” | ||
| Effective Pixels | 3027(H)x1728(V) | ||
| TV System | PAL/NTSC | ||
| Scanning System | Progressive | ||
| S/N Ratio | ≥58db | ||
| IR Distance | 30 m | ||
| IR On/Off Control | Auto/ Manual | ||
| IR LEDs | 36 LEDs | ||
| Lens | |||
| Lens Type | Fixed | ||
| Mount Type | Board-in | ||
| Focal Length | (2.8, 3.6, 6, 8, 12 mm fixed) | ||
| Max. Aperture | F1.2 | ||
| Optical Zoom | N/A | ||
| Focus Control | Fixed | ||
| Available lens | Lens | Angle (FOV) | Distance |
| 2.8 mm | 90 | 3 M | |
| Selected lens (by default) | 3.6 mm | 70 | 8 M |
| 6.0 mm | 50 | 15 M | |
| 8.0 mm | 33 | 20 M | |
| 12.0 mm | 22 | 40 M | |
| PTZ | |||
| Pan/Tilt/Zoom | N/A | ||
| Pan/Tilt/Zoom Range | N/A | ||
| Auto Zoom | N/A | ||
| Auto Track | N/A | ||
| Intelligence | |||
| IVS | N/A | ||
| Advanced Intelligent Functions | N/A | ||
| Video | |||
| Video Output | AHD, TVI, CVI, CVBS | ||
| Streaming Capability | 2 Streams | ||
| Resolution | 5MP(20fps/12.5fps)/4MP(30/25/15)fps/1080P(30/25)fps | ||
| 720P/960H/D1 | |||
| Frame Rate | Main Stream: 5MP@(1 ~ 20fps) | ||
| Sub Stream: D1@(1 ~ 25fps); | |||
| Bit Rate Control | CBR/VBR | ||
| Bit Rate | maximum bitrate | minimum bitrate | ultra minimum bit rate |
| 5MP: 3948bps @ 13fps | 5MP: 789bps @ 13fps | D1: 34bps @1fps | |
| Day/Night | Auto(ICR); Color; B/W, | ||
| Brightness | 1 to 20 | ||
| White Balance | ATW/MWB | ||
| Exposure Mode | Globe/BLC/FLC | ||
| Contrast | 1 To 16 | ||
| Sharpness | 1 To 16 | ||
| Color Gain | 1 To 16 | ||
| DNR | 1 To 16 | ||
| D-WDR | Off / On | ||
| Smart IR | N/A | ||
| Mirror | H/V/HV/Default | ||
| Digital Zoom | Manual | ||
| Interface | |||
| Video Interface | BNC | ||
| OSD | Available | ||
| UTC | Available | ||
| White Balance | ATW | ||
| Electrical | |||
| Power Supply | DC 12V | ||
| Power Consumption | <11W | ||
| Environmental | |||
| Operating Conditions | -10℃～+50℃ (-4F ~ +122F)，Less than 95%RH (No condensation） | ||
| Strorage Conditions | -20℃～+50℃ (-4F ~ +122F)，Less than 95%RH (No condensation） | ||
| Ingress Protection | IP66 Standard | ||
| Construction | |||
| Casing | METAL | ||
| Dimensions (Packed) | 215mm x 120mm x 120 mm (Tolerance +/- 20mm) | ||
| Net Weight (Packed) | 0.632kg (Tolerance +/- 0.20 kgs) | ||
