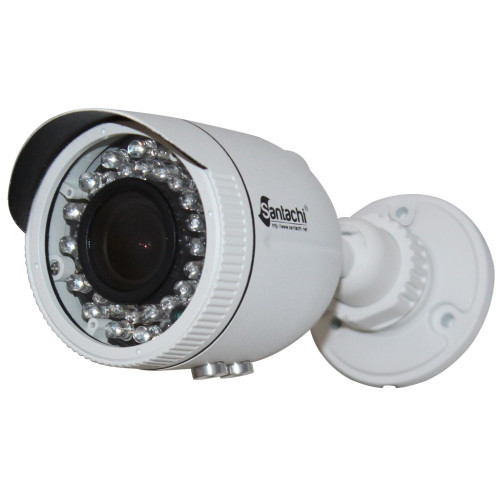

SAN25200BAS
$0.00
In Stock
Quick Overview
Description
| Image Sensor | |||
| Sensor size | 1/3” | ||
| Effective Pixels | 1920(H)x1080(V) | ||
| TV System | PAL/NTSC | ||
| Scanning System | Progressive | ||
| S/N Ratio | ≥58db | ||
| IR Distance | 20 m | ||
| IR On/Off Control | Auto/ Manual | ||
| IR LEDs | 36 | ||
| Lens | |||
| Lens Type | Varifocal | ||
| Mount Type | Board-in | ||
| Focal Length | 2.8 mm - 12 mm | ||
| Max. Aperture | F1.2 | ||
| Optical Zoom | N/A | ||
| Focus Control | Manual | ||
| Angle Adjustment | Pan: 0°to 360°, Tilt:0°to 90°, Rotate: 0°to 360° | ||
| Available lens In Verifocal | Lens | Angle (FOV) | Distance |
| Selected lens (by default) | 2.8 mm To 12.0mm | 90 To 22 | 3 M To 40 M |
| 6.0 mm To 22.0 mm | 50 To 10.6 | 15 M To 70 M | |
| PTZ | |||
| Pan/Tilt/Zoom | N/A | ||
| Pan/Tilt/Zoom Range | N/A | ||
| Auto Zoom | N/A | ||
| Auto Track | N/A | ||
| Intelligence | |||
| IVS | N/A | ||
| Advanced Intelligent Functions | N/A | ||
| Video | |||
| Video Output | AHD, TVI, CVI, CVBS | ||
| Streaming Capability | 2 Streams | ||
| Resolution | 1080P(1920×1080)/720P(1280×720)/960H D1(704×480) | ||
| CIF(352×240) | |||
| Frame Rate | Main Stream: 2MP@(1 ~ 25fps) | ||
| Sub Stream: D1@(1 ~ 25fps); | |||
| Bit Rate Control | CBR/VBR | ||
| Bit Rate | maximum bitrate | minimum bitrate | ultra minimum bit rate |
| 2MP: 8192fps @ 25fps | 1024fps @25fps | D1: 11fps @1fps | |
| UTC | Supported | ||
| OSD | Available | ||
| Day/Night | Auto(ICR); Color; B/W | ||
| White Balance | Selectable Modes | ||
| Color Gain Control | Manual (level 1 to 15) | ||
| DNR | Off / On | ||
| Smart IR | N/A | ||
| DWD R | Off / On | ||
| Brightness | Manual (level 1 to 100) | ||
| LSC | Off / On | ||
| Sharpness | Auto/Off | ||
| Digital Zoom | Manual | ||
| Interface | |||
| Video Interface | BNC | ||
| White Balance | Off/on | ||
| Electrical | |||
| Power Supply | DC 12V | ||
| Power Consumption | <11W | ||
| Environmental | |||
| Operating Conditions | -10℃～+50℃ (-4F ~ +122F)，Less than 95%RH (No condensation） | ||
| Strorage Conditions | -20℃～+50℃ (-4F ~ +122F)，Less than 95%RH (No condensation） | ||
| Ingress Protection | IP66 Standard | ||
| Construction | |||
| Casing | Metal | ||
| Dimensions (Packed) | 158 mm x 100 mm x 84 mm (Tolerance +/- 20mm) | ||
| Net Weight (Packed) | 450 Gms (Tolerance +/- 0.45 kgs) | ||
