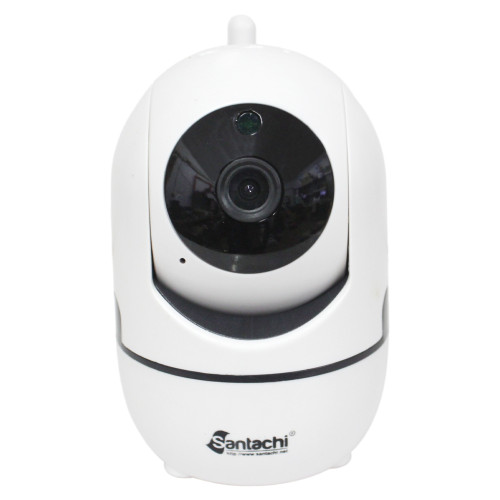

SAN312200WPA
$0.00
In Stock
Quick Overview
Description
| Image Sensor | |||
| Image Sensor | 1/3” CMOS | ||
| Effective Pixels | 1920(H) x 1080(V) | ||
| low illumination | 0.1LUX/F1.2 | ||
| Scanning System | Progressive | ||
| IR Distance | Distance up to 10m | ||
| IR On/Off Control | Auto | ||
| IR LEDs | 6pcs | ||
| Lens | |||
| Focal Length range | 3.6mm | ||
| Mount Type | Board-in | ||
| Optical Zoom | N/A | ||
| Focus Control | fixed | ||
| PTZ | |||
| Pan/Tilt | Auto /Manual | ||
| Rotation angle | Horizontal:355° ; vertical: 90° | ||
| Tilt Range | 0°~93° auto flip 180° | ||
| Guard Tours | 3 groups | ||
| Operation menu | English | ||
| Intelligence | |||
| IVS | N/A | ||
| Advanced Intelligent Functions | Object tracking | ||
| Video | |||
| Compression | H.265+ | ||
| Streaming Capability | 3 Streams | ||
| Resolution | 1080P(1920×1080)/D1 / CIF | ||
| Frame Rate | Main Stream: 2MP@(1 ~ 25fps) | ||
| Day/Night | Auto(ICR); Color; B/W | ||
| BLC Mode | Off / On | ||
| White Balance | Auto /Manual (Red gain /Blue gain) | ||
| Auto Gain Control | Auto/Manual (level 1 to 100) | ||
| Noise Reduction | 3D DNR | ||
| Privacy Mask | Support 4 area privacy mask | ||
| Motion Detetion | Off / On (22x18 Zones, Rectangle) | ||
| Region of Interest | N/A | ||
| Electronic Image Stabilization (EIS) | N/A | ||
| Smart IR | Support | ||
| Defog | Off / On (level 1 to 100) | ||
| Digital Zoom | N/A | ||
| Flip | Off / On | ||
| Mirror | Off / On | ||
| anti flicker | Off / On | ||
| IRSwap | Off / On | ||
| Privacy Masking | Off / On (4 Area, Rectangle) | ||
| Record management | |||
| Record Mode | Manual record, motion detection record, scheduled record, alarm record | ||
| Video file size | 14 - 20 GB/Day | ||
| Video storage | TF Card/Cloud | ||
| playback, back up | Support | ||
| Audio | |||
| Audio | Two way talk | ||
| Network | |||
| Transmit | P2P(plug and play), automatic port forwarding | ||
| WIFI | 802.11b/g/n | ||
| Max. User Access | 1 Users | ||
| Web Viewer | IE(recommended) | ||
| Management Software | XMEYE | ||
| Smart Phone | ICSEE / ICSEE PRO / XMEYE | ||
| Certifications | |||
| CE, UL, FCC | |||
| Interface | |||
| Audio Interface | Two way Talk | ||
| Alarm | Auto Motion tracker/ Snapshot/ Take a video / device beep | ||
| System Compatibility | ONVIF V.2.4 (Profile S, Profile G) | ||
| Suitable place | Home、shop、School、factory； | ||
| Reset Key | Support | ||
| TF Card | Maximum support 128GB TF card | ||
| Electrical | |||
| Power Supply | DC 5V (1.5A) | ||
| Power Consumption | <11W | ||
| Environmental | |||
| Operating Conditions | -10℃～+50℃ (-4F ~ +122F)，Less than 95%RH (No condensation） | ||
| Strorage Conditions | -20℃～+50℃ (-4F ~ +122F)，Less than 95%RH (No condensation） | ||
| Ingress Protection | IP65 Standard | ||
| Construction | |||
| Casing | Plastic | ||
| Dimensions (Packed) | 138x118x88mm | ||
| Net Weight (Packed) | 0.32 kg (Tolerance +/- 0.20 kgs) | ||
