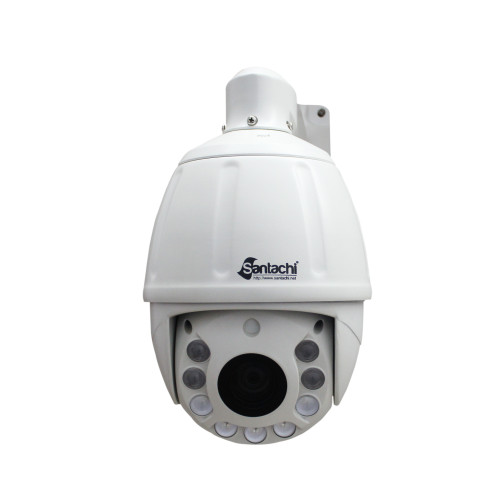

SAN34200SDB
$0.00
In Stock
Quick Overview
- 1/3" CMOS, 2.0 Mega Pixel AHD
- Resolution 1080P
- 37X Optical Zoom
- 4.6 - 170.2 mm Focus Length
- 360° Horizontal Rotation
- 93° Vertical Rotation
- PWM Auto Control IR LED
- IR Range upto 150 m
- IP66 Weather Proof
Description
| SPECIFICATIONS | |
| Image Sensor | 1/3" CMOS Aptina AR0130 |
| Output Resolution | 1080*1920 |
| Optical Focus | 37X |
| Focus Length | 4.6mm - 170.2 mm |
| Iris | F1.6~F2.8 |
| Min. illumination | Color: 0.5Lux \ B/W: 0.05Lux |
| Noise Reduction | 3D NR |
| D/N | IR-CUT |
| White Balance | Indoor/Outdoor/Auto/Manual |
| BLC | Support |
| AGC | Manual/Auto |
| S/N Ratio | ≥50dB |
| Auto Control IR LED | PWM |
| IR distance | Up to 150 meters |
| Support ambient light detection | IR illumination on 1-15 grades selectable; |
| Pan range | 360°continuous rotation |
| Tilt range | 0°~93° auto flip 180° |
| Manual Pan speed | 0.02~120°/S |
| Manual Tilt speed | 0.02~ 60°/S |
| Preset Points | 220 |
| Guard Tours | 3 groups |
| Guard Points | Max.16 points, dwell time user selectable |
| Pan and Tilt position display | Support |
| Communication mode | RS485 |
| Operation menu | English |
| Weatherproof Standard | IP66 |
| Operating temperature | Indoor:0ºC～+40ºC Outdoor: -40℃～+60℃ |
| Humidity | ≤95% Non Condensing |
| Power Supply | DC 12V Max 4A |
| Power Consumption | < 25W |
| Lightning Protection | Transient voltage 6000V |
