- SAN44200SAW

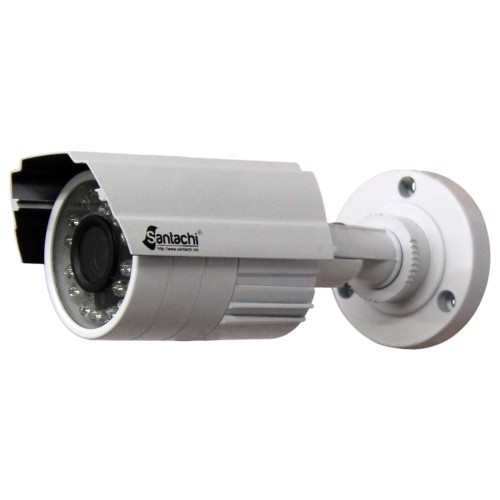

SAN44200SAW
$0.00
In Stock
Quick Overview
Description
| Image Sensor | |||
| Sensor size | 1/2.7” | ||
| Effective Pixels | 1920(H)x1080(V) | ||
| TV System | PAL/NTSC | ||
| Scanning System | Progressive | ||
| S/N Ratio | ≥58db | ||
| IR Distance | 5 to 7 m | ||
| IR On/Off Control | Auto/ Manual | ||
| IR LEDs | 24 | ||
| Lens | |||
| Lens Type | Fixed | ||
| Mount Type | Board-in | ||
| Focal Length | (3.6, 6 mm fixed) | ||
| Max. Aperture | F1.2 | ||
| Optical Zoom | N/A | ||
| Focus Control | Fixed | ||
| Available lens | Lens | Angle (FOV) | Distance |
| Selected lens (by default) | 3.6 mm | 70 | 8 M |
| 6.0 mm | 50 | 15 M | |
| PTZ | |||
| Pan/Tilt/Zoom | N/A | ||
| Pan/Tilt/Zoom Range | N/A | ||
| Auto Zoom | N/A | ||
| Auto Track | N/A | ||
| Intelligence | |||
| IVS | N/A | ||
| Advanced Intelligent Functions | N/A | ||
| Video | |||
| Video Output | AHD, TVI, CVI, CVBS | ||
| Streaming Capability | 2 Streams | ||
| Resolution | 1080P(1920×1080)/720P(1280×720)/960H(960×480) D1(704×480) | ||
| CIF(352×240) | |||
| Frame Rate | Main Stream: 2MP@(1 ~ 25fps) | ||
| Sub Stream: D1@(1 ~ 25fps); | |||
| Bit Rate Control | CBR/VBR | ||
| Bit Rate | maximum bitrate | minimum bitrate | ultra minimum bit rate |
| 2MP: 8192bps @ 25fps | 512bps @25fps | D1: 95bps @1fps | |
| Day/Night | Auto(ICR); Color; B/W / Mono / Smart IR | ||
| AWB Mode | Gray World / Pro / MWB | ||
| Exposure Mode | Global / BLC | ||
| Image Enhance | Contrast / Sharpness / Saturate / 3 DNR / DWDR | ||
| FUNC | Privacy / Motion | ||
| Smart IR | Support | ||
| Digital Zoom | Manual | ||
| Interface | |||
| Video Interface | BNC | ||
| White Balance | AE / AWB | ||
| Electrical | |||
| Power Supply | DC 12V | ||
| Power Consumption | <11W | ||
| Environmental | |||
| Operating Conditions | -10℃～+50℃ (-4F ~ +122F)，Less than 95%RH (No condensation） | ||
| Strorage Conditions | -20℃～+50℃ (-4F ~ +122F)，Less than 95%RH (No condensation） | ||
| Ingress Protection | IP66 Standard Weatherproof | ||
| Construction | |||
| Casing | Metal | ||
| Dimensions (Packed) | 158 mm x 100 mm x 84 mm (Tolerance +/- 20mm) | ||
| Net Weight (Packed) | 0.250kg (Tolerance +/- 0.20 kgs) | ||
