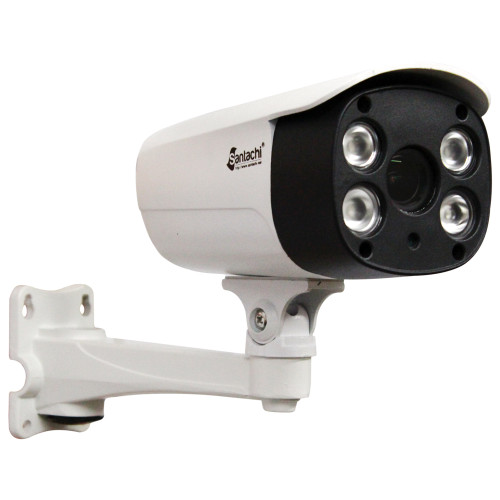

SAN5216200BAE
$0.00
In Stock
Quick Overview
Description
| Image Sensor | |||
| Sensor size | 1/2.8” | ||
| Effective Pixels | 1920(H)x1080(V) | ||
| TV System | PAL/NTSC | ||
| Scanning System | Progressive | ||
| S/N Ratio | ≥58db | ||
| IR Distance | Distance up to 30 Meters | ||
| IR On/Off Control | Auto/ Manual | ||
| IR LEDs | 4 High Power Array LEDs | ||
| Lens | |||
| Lens Type | Motorise Varifocal | ||
| Mount Type | Board-in | ||
| Focal Length | 2.8 mm - 12 mm | ||
| Max. Aperture | F1.2 | ||
| Optical Zoom | 4 X | ||
| Focus Control | Auto | ||
| Angle Adjustment Manual | Pan: 0°to 360°, Tilt:0°to 90°, Rotate: 0°to 360° | ||
| Available lens In Verifocal | Lens | Angle (FOV) | Distance |
| Selected lens (by default) | 2.8 mm To 12.0mm | 90 To 22 | 3 M To 40 M |
| PTZ | |||
| Pan/Tilt | N/A | ||
| Zoom Range | 4X Optical Zoom | ||
| Auto Focus | Available | ||
| Auto Track | N/A | ||
| Intelligence | |||
| IVS | N/A | ||
| Advanced Intelligent Functions | N/A | ||
| Video | |||
| Video Output | AHD, TVI, CVI, CVBS | ||
| Streaming Capability | 2 Streams | ||
| Resolution | 1080P(1920×1080)/720P(1280×720)/960H D1(704×480) | ||
| CIF(352×240) | |||
| Frame Rate | Main Stream: 2MP@(1 ~ 15fps) | ||
| Sub Stream: D1@(1 ~ 8fps); | |||
| Bit Rate Control | CBR/VBR | ||
| Bit Rate | maximum bitrate | minimum bitrate | ultra minimum bit rate |
| 2MP: 5415bps @ 15fps | 676bps @15fps | D1: 95bps @1fps | |
| Day/Night | Auto(ICR); Color; B/W | ||
| BLC Mode | Off / On | ||
| White Balance | Auto | ||
| Auto Gain Control | Auto/Manual (level 1 to 15) | ||
| DNR | High/Medium/Low/Off | ||
| Mirror | Vertical/ Horizontal / Vertical + Horizontal /Off | ||
| Noise Reduction | 2D DNR | ||
| DWD R | Off / On | ||
| Brightness | Manual (level 1 to 100) | ||
| Sharpness | Auto/OFF | ||
| Digital Zoom | Manual | ||
| Interface | |||
| Video Interface | BNC | ||
| OSD | Available | ||
| UTC | Available | ||
| White Balance | ATW / AWB / AWC-->SET / INDOOR / OUTDOOR / MANUAL | ||
| Electrical | |||
| Power Supply | DC 12V | ||
| Power Consumption | <11W | ||
| Environmental | |||
| Operating Conditions | -10℃～+50℃ (-4F ~ +122F)，Less than 95%RH (No condensation） | ||
| Strorage Conditions | -20℃～+50℃ (-4F ~ +122F)，Less than 95%RH (No condensation） | ||
| Ingress Protection | IP66 Standard | ||
| Construction | |||
| Casing | Metal | ||
| Dimensions (Packed) | 300 mm x 163mm x 128 mm (Tolerance +/- 20mm) | ||
| Net Weight (Packed) | 1.05kg (Tolerance +/- 0.20 kgs) | ||
