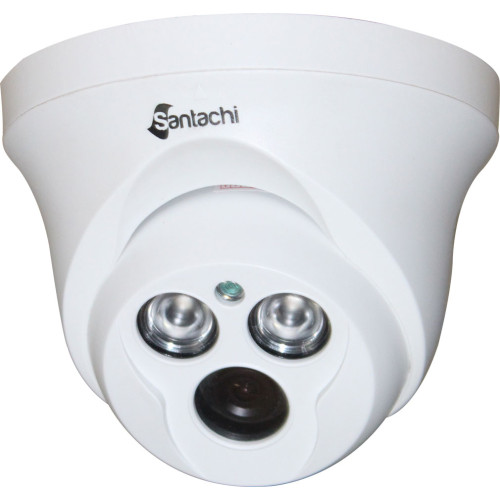

SAN5600DAZ
$0.00
In Stock
Quick Overview
Description
| TV System | PAL | NTSC |
| Effective Pixel | P:628(H)*582(V) | N:510(H)*492(V) |
| Image Sensor | 1/3”CMOS | |
| Horizontal Definition | 600TV Line | |
| Lens | 3.6 mm | |
| IR View Distance | 15 to 20 meter | |
| LED | 2 High Power Array Leds | |
| LED Switch | Auto | |
| Minimum Illumination | 0LUX | |
| AGC | Auto | |
| Synchronization System | Internal | |
| Video Frame Rate | 25 fps (PAL) / 30 fps (NTSC) | |
| Scanning Frequency | 50Hz | |
| Backlight Compensation | Auto | |
| Electronic Shutter | 1/50(1/60)~1/100.000sec | |
| White Balance | Auto | |
| S/N Ratio | ›48db | |
| Gamma Correction | ›0.45 | |
| Weather Proof Standard | IP65 | |
| Operation Temperature | -10~+50 | |
| Operation Humidity | 80%RH | |
| Power Supply | 12 VDC±10% | |
| Power Consumption | Max. 2A | |
